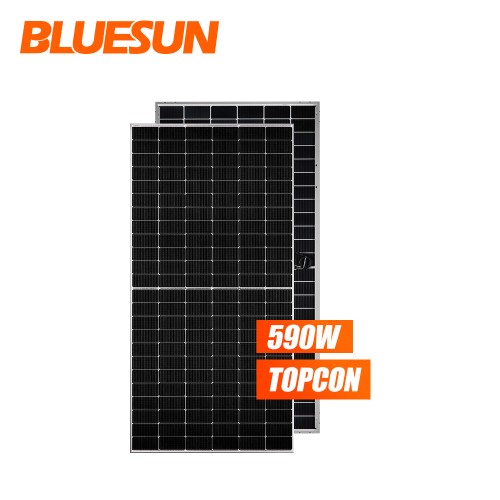

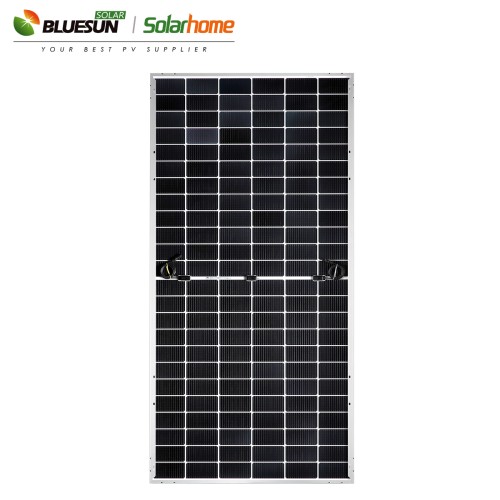

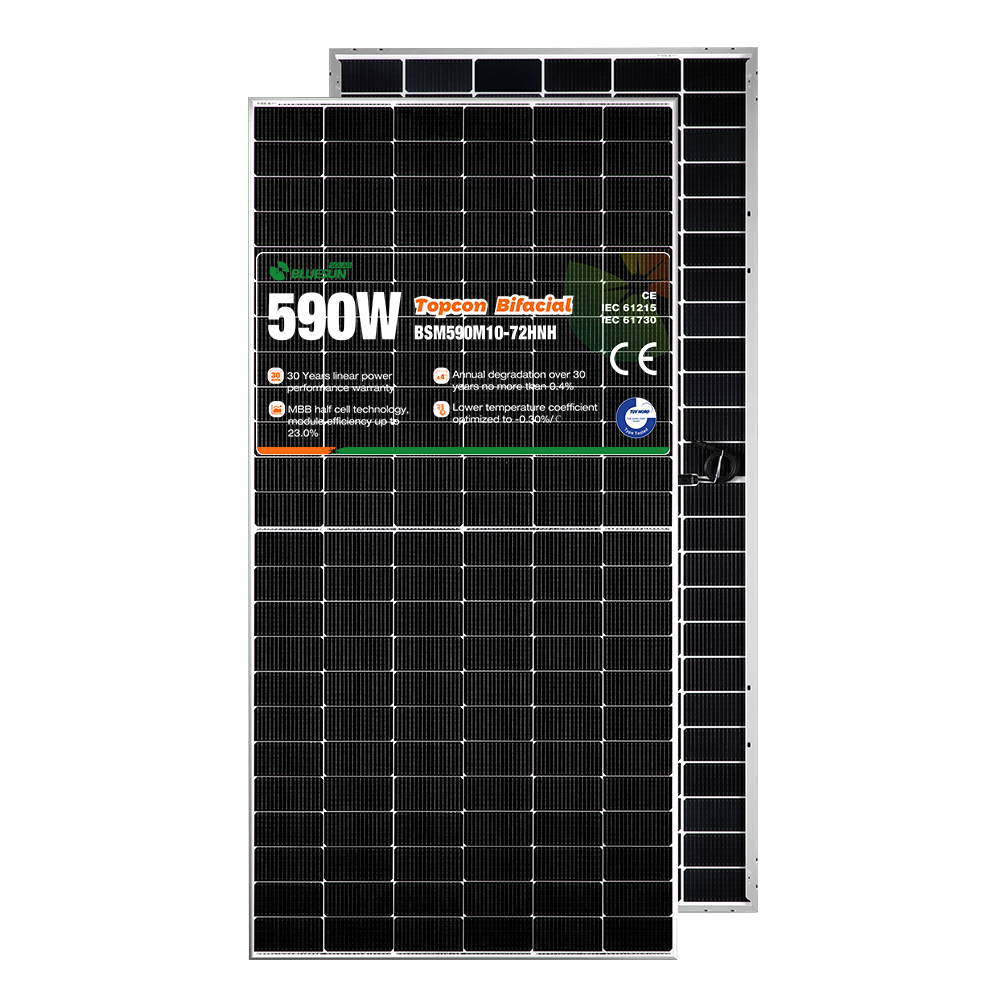

Bluesun N-Type Topcon Bifacial Solar Panel (1x) - 590W
Bluesun N-Type Topcon Bifacial Solar Panel (1x) - 590W
-
Price:FL 415.00
As low as FL 50.15/month with
Learn more
- In Stock
Description:

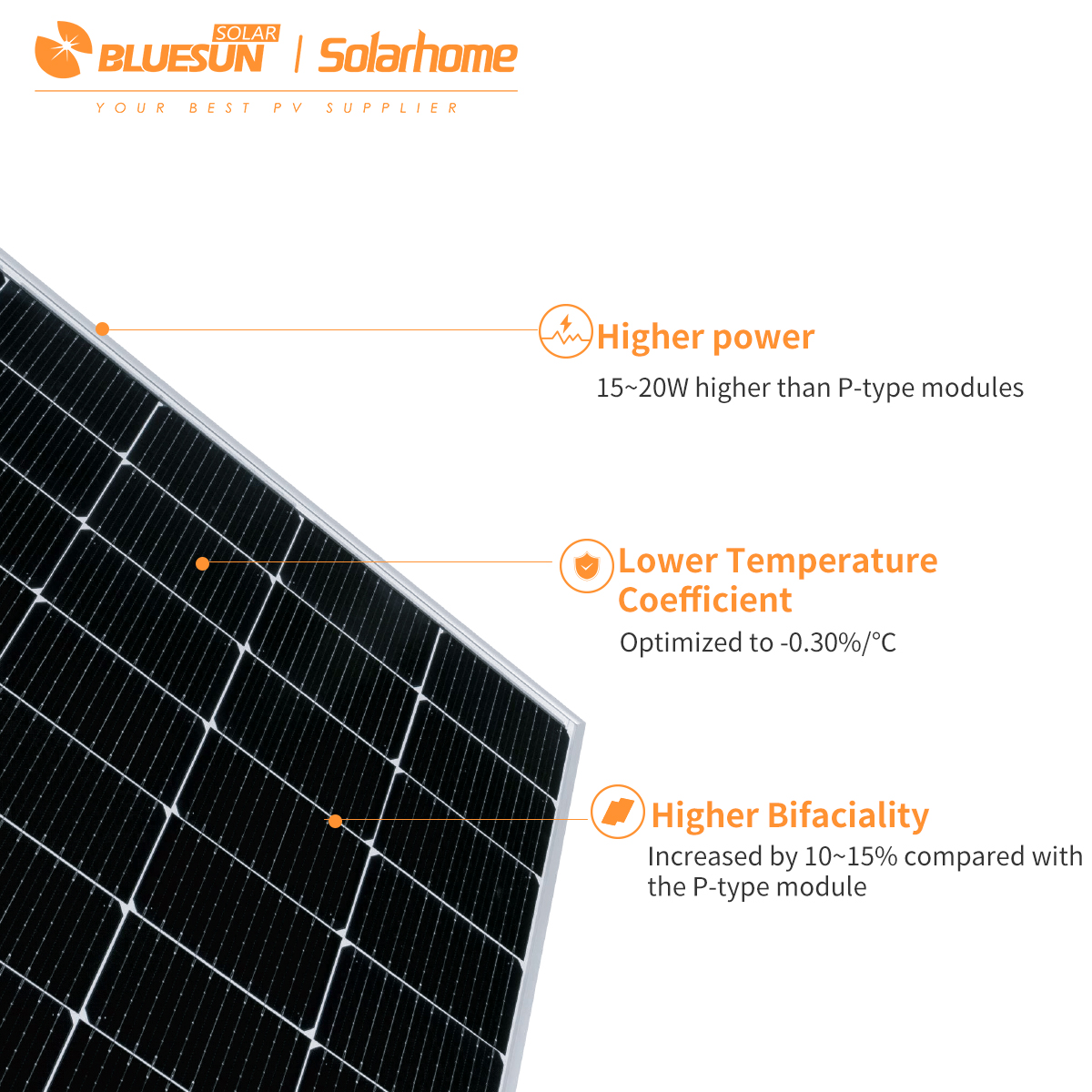

*Higher power
For the same module type, the power of N-type modules is 15~20W higher than that of P-type modules.
*Higher Bifaciality
For the same module type, the bifaciality of the N-type module is increased by 10~15% compared with the P-type module.
*Lower Temperature Coefficient
The temperature coefficient of the P-type module is -0.34%/℃ The temperature coefficient of the N-type module is optimized to -0.30%/℃. Power generation is particularly prominent in high-temperature environments

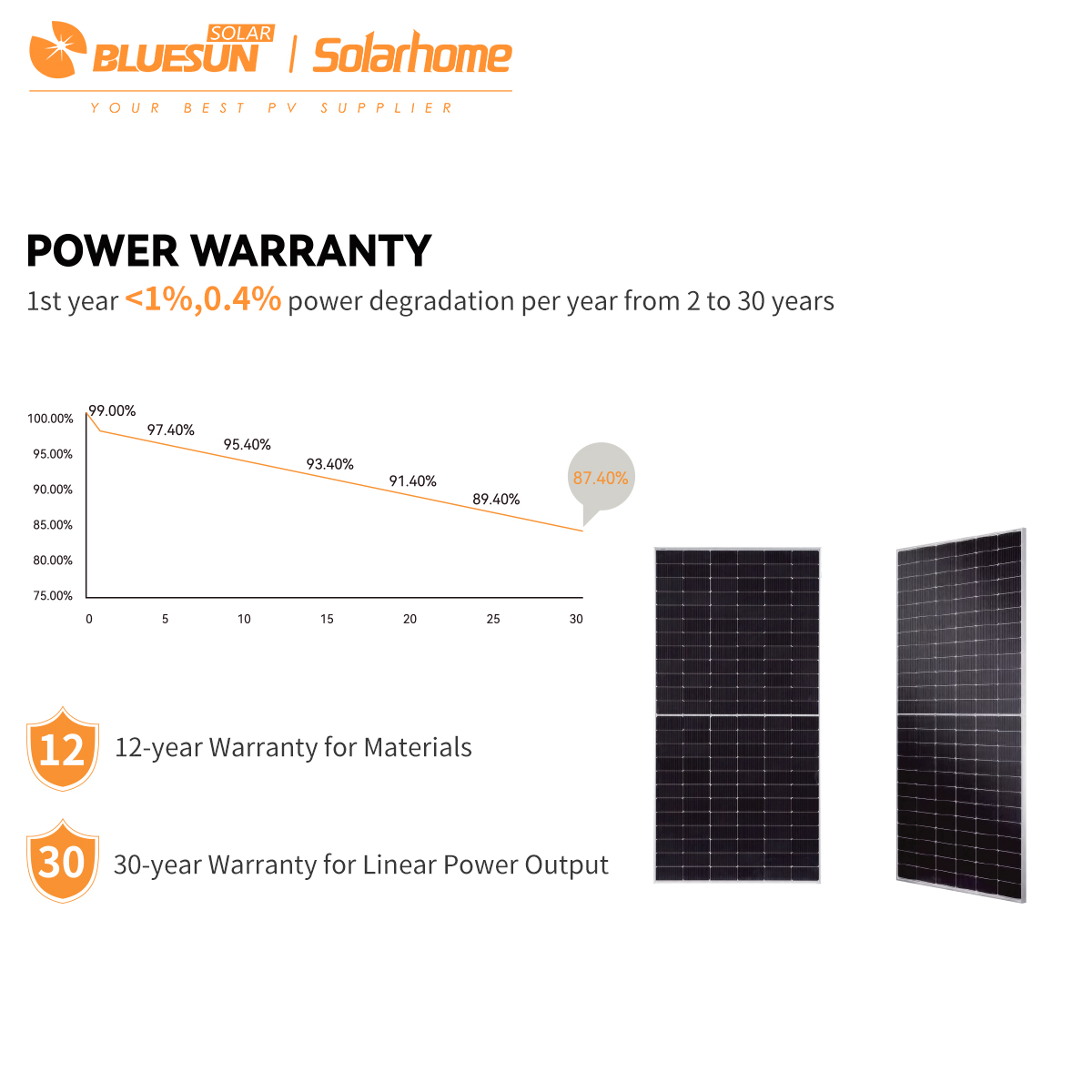

*Better Output Warranty
1st year <1%(P-type 2%). 30-year warranty for both monofacial and bifacial poweroutput (30 years for P-type bifacial and 25 years for P-typemonofacial). Output power is no less than 87.4% of the initial after 30years.
***HIGHLIGHTED MODULE TYPE SPECIFICATIONS VALID***
| SPECIFICATIONS | ||||||||
| Module Type | BSM580M10-72HNH | BSM585M10-72HNH | BSM590M10-72HNH | BSM595M10-72HNH | ||||
| STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | |
| Maximum Power (Pmax/W) | 580 | 436.2 | 585 | 440 | 590 | 444 | 595 | 448 |
| Operating Voltage (VmpM | 43.28 | 40.05 | 43.48 | 40.1 | 43.68 | 40.15 | 43.88 | 40.2 |
| Operating Current (lmp/A) | 13.41 | 10.86 | 13.47 | 10.94 | 13.53 | 10.86 | 13.59 | 11.1 |
| Open-Circuit Voltage (Voc/ V) | 51.64 | 49.05 | 51.84 | 49.24 | 52.04 | 49.05 | 52.24 | 49.62 |
| Short-Circuit Current (lsc/A) | 14.29 | 11.6 | 14.33 | 11.64 | 14.37 | 11.6 | 14.41 | 11.72 |
| Module Efficiency(%) | 22.5 | 22.7 | 22.8 | 23.0 | ||||
