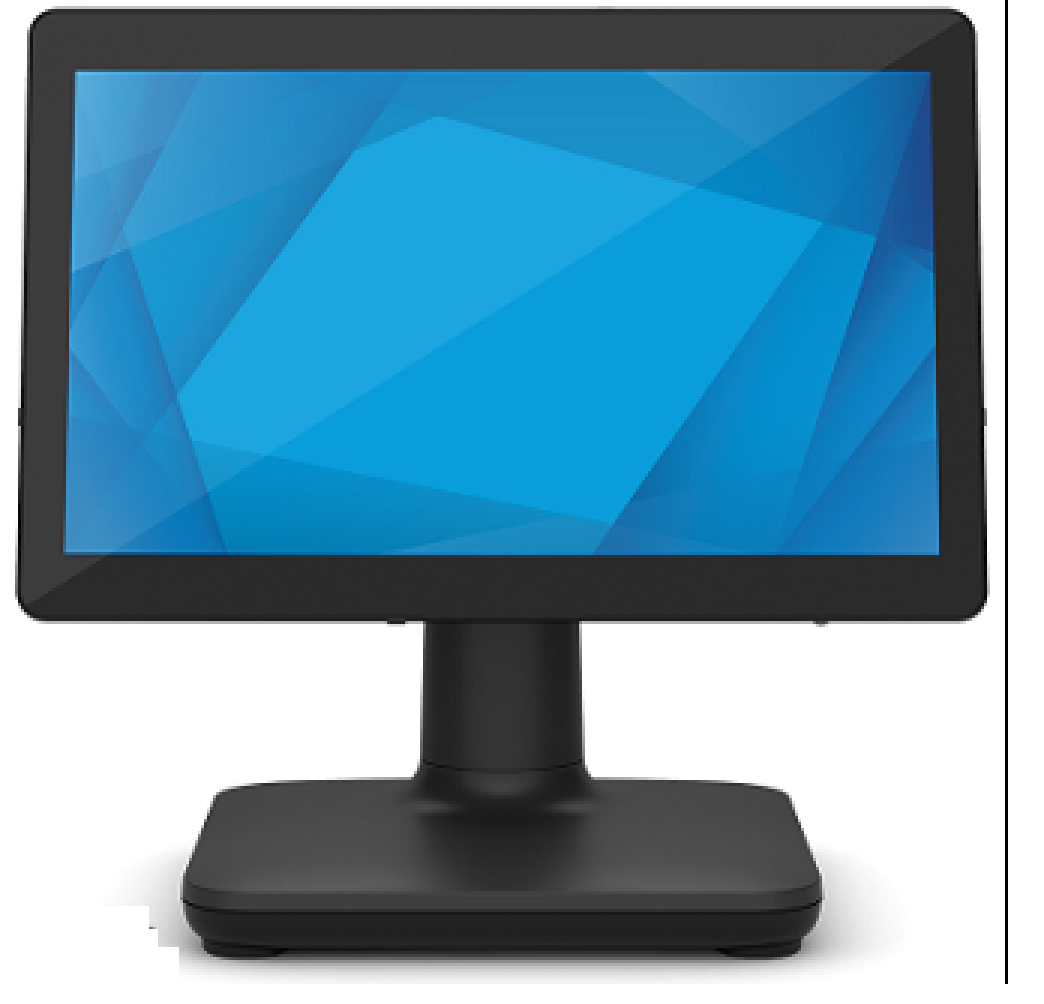

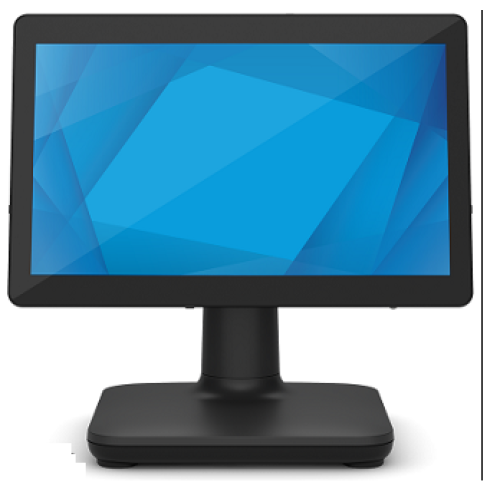

Elo E-Series 2 POS System E135925 No OS, 15.6-inch wide, Celeron, 4GB RAM, 128GB SSD, PCAP Touch

Elo E-Series 2 POS System E135925 No OS, 15.6-inch wide, Celeron, 4GB RAM, 128GB SSD, PCAP Touch
Click image to zoom in

Elo E-Series 2 POS System E135925 No OS, 15.6-inch wide, Celeron, 4GB RAM, 128GB SSD, PCAP Touch

  • Price:FL 2,415.00

    As low as FL 291.81/month with Learn more

  • Only 3 left in stock - order soon.
-+

Get this delivered by 10.30 AM
Get this delivered by 10.30 AM

Description:

Part Number(s)No OS - E135925
Win 10 - E136131
Enclosure Color Black
Touch Technology and CapacityPCAP (TouchPro Projected Capacitive) - 10 Touch
ProcessorIntel Celeron Processor J4125 (4M Cache, up to 2.7 GHz)
GraphicsIntel UHD Graphics 600
BIOSAMI
Memory (RAM)4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)
Storage128GB M.2 SATA SSD, 80 TBW
TPM2.0
Diagonal Size15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio16:9
Active Area (mm)13.55" x 7.62" / 344.2 mm x 193.5 mm
Resolution1366 x 768 @ 60Hz
Number of Colors266,144
Brightness (typical)LCD Panel: 220 nits
PCAP: 187 nits
Response Time-total (typical)10 msec
Contrast Ratio400:1
Viewing AngleHorizontal: 45°/45° or 90° total / Vertical: 15°/35° or 50° total
USB Ports3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)
Powered USB1 x 24V on I/O
2 x 12V on I/O
Ethernet Port1 x LAN RJ45 (Gigabit)
Serial Ports2 x RJ45
Cash Drawer Port12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)
Additional Video Out1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
Audio Ports1 x 3.5 mm headset jack
Speakers2 x 2W internal speakers
OSNo OS
Windows 10 IoT Enterprise LTSC 64-bit
LanguagesWindows 10 - 36 Language groups
Power SupplyExternal 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W
Power Consumption (Typical)24W
Dimensions15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm
Shipping Box Dimensions18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm
Weight (Unpackaged)10.4 lbs / 4.7 kg
Weight (Packaged)15.2 lbs / 6.9 kg
Operating Temperature0°C to 35°C / 32°F to 95°F
Storage Temperature-20°C to 60°C / -4°F to 140°F
HumidityOperating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)
Regulatory approvals and declarationsUL/cUL, FCC, TUV, CE, CB, NOM, S-Mark, UKCA
Real-Time ClockCR2032 lithium metal battery
MTBF50,000 hours demonstrated
Mounting Options75mm VESA mount
Warranty3-year ELO Warranty

SealabilityTouchscreen sealed to sub-bezel
Touchscreen sealed to LCD
Power CablesNorth American and European power cables included
Other FeaturesServiceable internal components.
Kensington lock.
What's in the BoxE-Series 2
North America Power Cord
EU Power Cord
Power Adapter – 180W
Cable Management Kit
Quick Installation Guide (QIG)
